Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: GEMCO animal feed production line
  • Model Number: 1 TPH feed pellet production line.
  • Type: Feed Pellet Machine
  • Voltage: 380V 50HZ 3phase
  • Power(W): 22kw*2
  • Dimension(L*W*H): 2200*1000*1500mm
  • Weight: 6000 kg
  • Certification: ISO, BV and CE Certificated feed pellet production line
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Production capacity(Max.): 1000-2000kg/hr
  • Widely exported to: Russia, USA, Australia, Malaysia, Chile, Portugal, etc.
  • Raw material: maize, corn, wheat bran, soybean meal/cake, bone powder, etc.
  • Color: Can be made as per buyers' request
  • Spare parts: die and rollers
  • Advantage: the pellet machine is supplied directly by factory with low price
  • After services: Sufficient spare parts of feed pellet making machine
  • Application: animal feed production plant
  • Year of manufacture: Newly manufactured feed pellet production line
  • Pelletizing diameter: 2mm,3mm,4mm,6mm,8mm,10mm animal feed production line

Packaging & Delivery

Packaging Details All our small pellet plant are packaged seriously with strong frame and wood cases to ensure you get the portable pellet plant in perfect state Besides, if you have any other requirement on the pellet mill package, don't hesitate to contact us And we will do our best to meet your demand.
Delivery Time 15-20days after deposite


1 ton per hour turnkey business plan small poultry animal feed pellet processing plant project uses feed pellet production line

feed pellet production line introduction

The feed pellet production line is a complete set of machines that are specifically used to make feed pellets. The key machines like hammer mill, feed mixer and feed pellet machine are patented product through 10 years research and development combined with advanced technology by Anyang GEMCO Energy Machinery Co.,Ltd. The capacity can range from 1 tons per hour to 30 tons per hour. The animal feed production line generally including the following process: raw materials  crushing process, mixing process, pellet making process, pellet cooling process, sifting process and so on. Each process in animal feed production plant includes different kinds of machines. All these machines form a whole set of animal feed production line which guarantee the automatic production of feed pellets in large quantity and high quality for livestock, poultry and such animals as pig, cow, sheep, etc.




Technical parameter of animal feed production plant

ModelCapacity
HKJ25C1~2t/h
HKJ32C1-3t/h
HKJ32D3-5t/h
HKJ35D3-7t/h
HKJ40D4-10t/h
HKJ45D6-15t/h

Click Now for Catalogs & Factory Price!



feed pellet production line Application Raw Materials:

Cereals: soybean, soybean meal, maize, corn,  corn flour,  grain, sorghum, wheat flour, etc;
Coarse fiber: crop stalks (corn stalk, sorghum stalk, cotton stalk, rape stalk, peanut seedling, sunflower stalk), chaff, grass, grass meal, alfalfa, wheat bran, rice husk, grass, groundnut shell, cotton seed shell, etc;
Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin,etc;

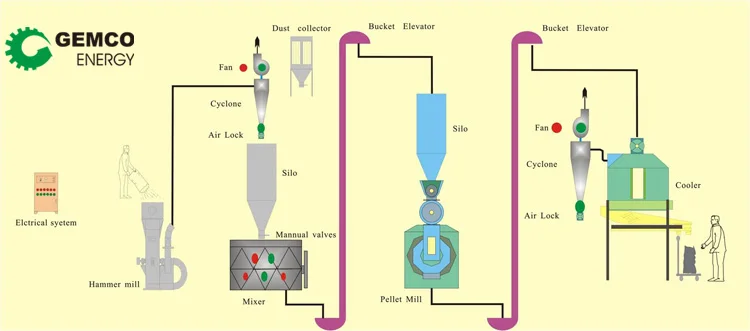

Proction Flow Chart of This animal feed production line



Main Equipments of feed pellet production line



Hammer Mill






Mixing Machine




Pellet Machine




Pellet Packing Machine

Click Now for Catalogs & Factory Price!



Detailed introduction of feed pellet production line

Based on the capacity of ring die pellet mill, we have different feed pellet production line for your choice.
The capacity of feed line is relevant to the ring die pellet mill machine.
We will briefly introduce each working process of the animal feed production line so that we know what machines are included and their main functions

1. Crushing and Mixing process—vertical feed mixer

This feed pellet production line adopts self-priming hammer crusher and  mixer unit  ,which  is used to crush to raw materials and then mix the crushed materials with higher uniformity.

2. Pellet making process

The feed pellet mill press the raw materials into pellets.

3. Pellet cooling process—counter flow cooler

The newly pressed pellets are very high in temperature. This process is to cool the pellets to +3-5℃ of the room temperature.

4. Sifting process–vibratory sizing sieve and plenary rotary sizing sieve

This process is mainly to sort out the inappropriate pellets and powder and send the standard pellets to next process.This animal feed production plant adopts cooler and vibratory sizing sieve unit.


Advantages of animal feed production plant

The animal feed production line covers little space and is highly-automatized.
It can produce smooth and hard pellets which are suitable for all kinds of animals
The pellets are very nutritional and can satisfy the growth needs of animals.
It makes 2-8 mm diameter animal feed pellets. Such as 2-4mm diameter chick feed pellets and pig feed pellets. 1.5-3mm fish feed pellet, 2-5mm rabbit feed pellet, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.
The key pellet machine can produce large pressure and make materials fully cured. Machine key parts are made by our CNC system, through high technical heat treatment, which is high precision and quality.


How do we pack & ship the animal feed production plant

Click Now for Catalogs & Factory Price!

GEMCO animal feed production line successful projects





Enquire about our factory price animal feed production plant




GEMCO feed pellet production line customer visit
