Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: GEMCO
  • Model Number: KMPM45 feed manufacturing equipment.
  • Type: Feed Pellet Machine
  • Voltage: 380V,50HZ,3Phase
  • Power(W): 55x2kw
  • Dimension(L*W*H): 2400*2300*1700mm
  • Weight: 3500 kg
  • Certification: CE&ISO
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Power forces: electrical motor
  • Raw material: maize, wheat bran, rice, beans, bone powder, etc.
  • Capacity: 4-10T/h; 1-15ton/h available
  • Pellet diameter: 2-10mm
  • Spare parts: roller and ring die
  • Application: animal feed manufacturing equipment
  • After services: Sufficient spare parts of feed pellet making machine
  • Widely exported to: Russia, USA, Australia, Malaysia, Chile, Portugal, etc.
  • Year of manufacture: Newly manufactured poultry feed manufacturing equipment
  • Color: Can be made as per buyers' request

Packaging & Delivery

Packaging Details Don't hesitate to contact us And we will do our best to meet your demand on the packaging of the small wood pellet machine All our wood pellet machines are packaged seriously with strong frame and wood cases to ensure you get the small pellet machine in perfect state Besides, if you have any other requirement on the wood pellet machine package.
Delivery Time 10-30days after deposite

2017 New wholesale price livestock animal poultry chicken fish feed manufacturing equipment manufacturer

The main components of animal feed manufacturing equipment in the feed pellet plant consists of feed grinding machine, feed mixing machine, feed pellet machine, feed pellets cooling machine and feed pellets packing machine. The auxiliary poultry feed manufacturing equipment is conveying machine, control cabinet, storage bins, dust collector, fire protection equipment and so on. And the most important part in a feed pellet plant will be the feed pellet machine.




Technical parameter of poultry feed manufacturing equipment

Model No.Main motor powerCapacity (t/h)Ring die inner diameter (mm)Feeder power (kw)Conditioner motor power (kw)Size (mm)Weight (kg)
KMPM2522kw1-22500.751.11750×650×1750800
KMPM3222kw×22-53200.752.21900×1800×16502000
KMPM3530kw×23-73500.752.22100×2000×18502400
KMPM4045kw×24-104001.542200×2000×21502900
KMPM4555kw×26-154501.542300×2350×21503500

Click Now for Catalogs & Factory Price!



Main Structure of Poultry Feed Manufacturing Equipment

This ring die feed manufacturing equipment is mainly consist of feeding device (screw feeder), hardening and tempering device (conditioner), face plate, press chamber transmission system, overload protection and electrical control system.





Raw materials for animal feed manufaturing equipment

The raw material can be corn/maize, alfalfa, wheat bran, grass, rice, beans, oil cake, etc. Usually, large size raw materials should be pulverized by hammer mill. Protein or other nutrients can also be added to the raw powder.





Features of ring die poultry animal feed manufacuring equipment machine

This model uses double motor SPB strong narrow belt transmission system, has ideal transmission efficiency, rotation steady, output high, noise low,no oil leak pollution, maintenance cost low
This model has φ1.5-φ12mm many kinds of aperture and thickness link model; the user can wilfully select according to different need to obtain the best technology and economic efficiency;
Fixed stainless steel pelletizing knife equipment, adjustment is more intuitionistic; Quick-discharge anchor ear link model, can match coordinated type pressure roller regulating mechanism and link mold hoisting equipment;
This model uses transducer control material feeding, has over loading protector, outboard discharging mechanism.
Push-brace oil pump lubricating gear, quick and saving labour, safe and reliable, can realize to refuel without stopping engine;
It is suitable to high quality animal and poultry feed, aquatic product feed and other materials pellet.

Click Now for Catalogs & Factory Price!



Details Show

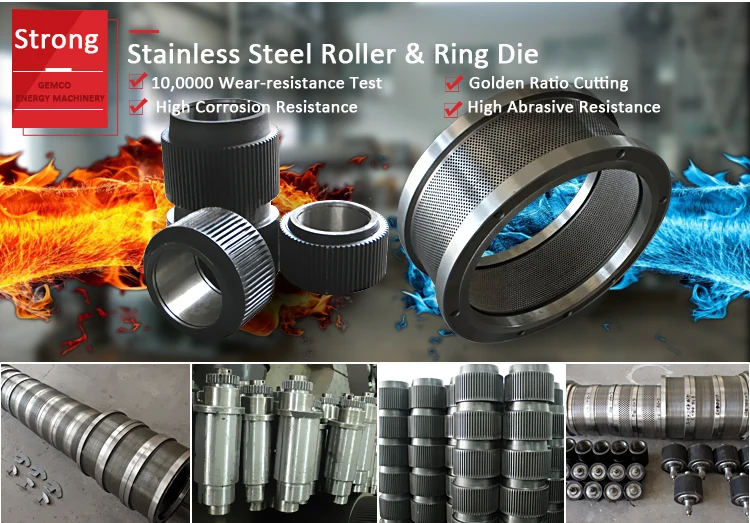

Main spare parts of animal feed manufacturing equipment


The size of  pellets has various choices: 2.5 ,4, 6, 8, 10 mm, or other customized diameter. At the same time, you can customize the ring die of the feed manufacturing equipment with different thickness and compression ratio to adapt to different materials and realize best pelleting result.


Why GEMCO feed manufacturing equipment is BETTER?

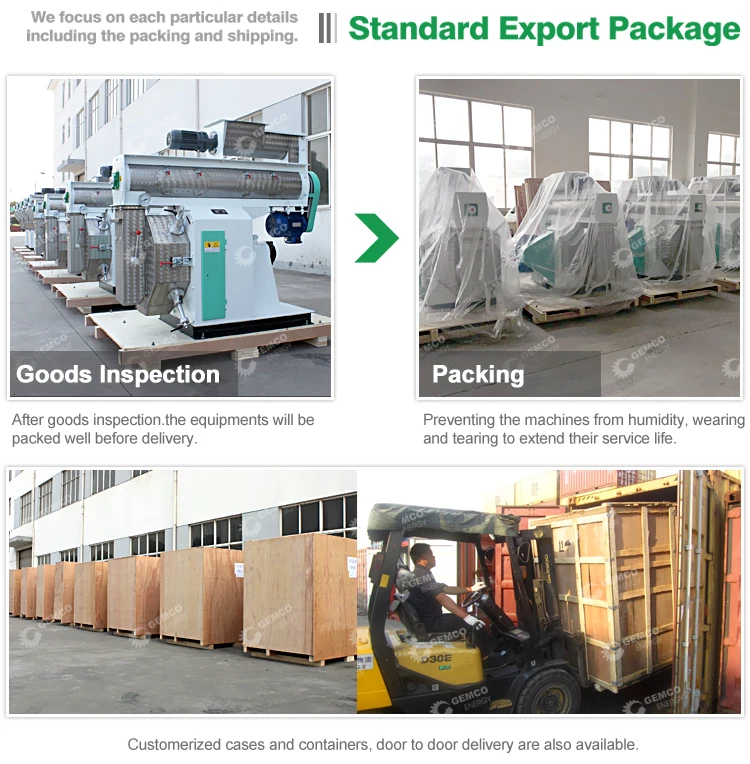

How do we pack the animal feed manufacturing equipment?




poultry feed manufacturing equipment in complete feed pellet plant

GEMCO Factory Show

Factory price feed manufacturing equipment



GEMCO feed manufacturing equipment agents recruiting

.
