2 ton per hour screw biomass wood briquette extruder machine complete charcoal briquette production line

FOB Reference Price:Get Latest Price
$2,500.00 - $5,000.00 / Sets | 1 Set/Sets In stock (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
1-3t/h
Dimension(L*W*H):
2700*600*1600mm
Application:
charcoal briquette extruder machine, Burning
Place of Origin:
Henan, China
Brand Name:
GEMCO
Model Number:
2TPH screw charcoal briquette production line
Voltage:
220v/380v, 380V,50HZ,3 Phase
Power(W):
15kw
Weight:
700kg
Features:
Energy Saving
Condition:
New
Certification:
ISO, BV and CE Certificated briquette production line
Product Name:
GEMCO briquette production line
Briquette output:
2000 kg per hour
Raw material:
Straw,rice husk
Motor choice:
Electirc of briquette extruder machine
OEM:
Be acceptable
Package:
Wooden case
Dia briquettes:
70*70mm
Key machine:
charcoal briquette extruder machine
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
All our briquette production line, briquette extruder machine are packaged seriously with strong frame and wood cases to ensure you get the charcoal briquette extruder machine in perfect state Besides, if you have any other requirement on the briquette machine package, don't hesitate to contact us And we will do our best to meet your demand.
Port
Shanghai
Lead Time :
15 days since prepayment arrived


2 ton per hour screw biomass wood briquette extruder machine complete charcoal briquette production line

The briquette production line is an eco friendly technology to convert diverse residues like forestry, industrial and agriculture waste into solid blocks of bio-fuel. Cylindrical shaped briquettes are made with high mechanical pressure using binder less technology by charcoal briquette extruder machine. Hence no need for any binder or chemical. Bio-briquettes are substitute to non renewable fossil fuels and can be used in several manufacturing industries like kilns, furnaces and boilers. Ecological bio-briquettes are pollution free and also contribute to greener surroundings which save worthy foreign exchange. The motto behind bio-briquettes is Wealth from Waste.


2 ton per hour screw charcoal briquette production line


The briquette production line converts agriculture residues into solid bio-fuel. For farmers to earn money from waste, briquetting press is the promising substitute for green energy production. This briquette production line can make stick shape wood briquette of different diameter and different shape from biomass and agro-forest waste.


The complete charcoal briquette production line exhibition

Click Now for Catalogs & Factory Price!

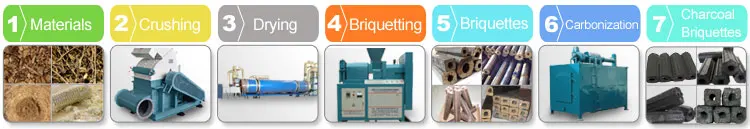

How to start a complete charcoal briquette production line?

A complete charcoal briquette production line or briquetting process can be divided into: crushing, drying, mixing, delivery, molding, testing and packaging. Of course, some steps will be omitted according to actual situation.


What's kind of materials can our charcoal briquette extruder machine?

During the manufacturing process, this screw briquette extruder machine is designed to accommodate various different biomass materials. Actually, it can handle most kinds of biomass materials, such as bark, cardboard, cellulose, cotton stalk, hay, paper, tobacco, wood chips, wood dust (saw dust).

The briquetting raw materials may vary as to different customers, so it is necessary to ensure that your materials can be briquetted before buying one briquette press machine. Feel free to tell us your materials for briquetting and then we can offer tailor-made solutions based on your specific materials and situation. We supply a series of briquetting press with different output and price.

The size of raw material should be less than 5*5mm and the moisture content should be around 8%. All the materials above can be made into various shapes according to different product requirements by using different rollers.

Click Now for Catalogs & Factory Price!

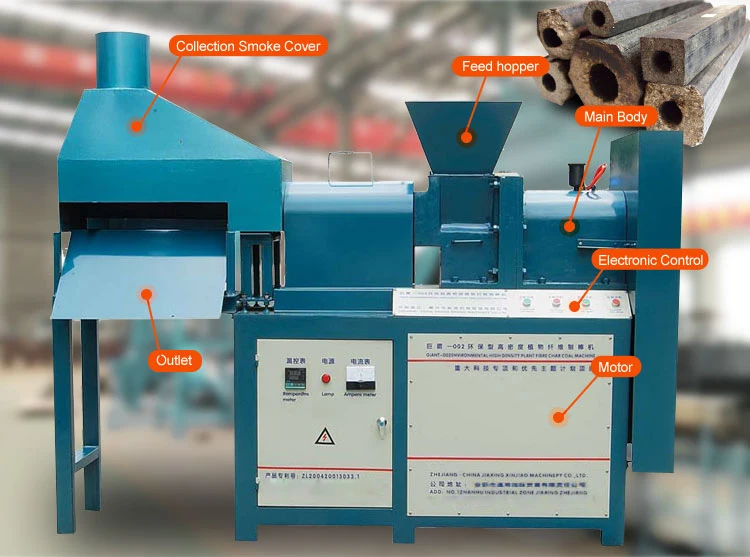

Key equipment of briquette production line: briquette extruder machine

Main parameter of the charcoal briquette extruder machine

ModelGCBC-IGCBC-II
Output capacity kg/h180-210300-350
Motor Power (kw)15kw18.5kw, 360v, 6 grades
Electric heater (kw)2.2*2kw2.2×2kw
Heating Range280~350℃280~350℃
Life of the inner former1-2years1-2years
Size of briquettesDia.50mm*L.480mmDia.60/50mm*L.500mm
Size of inside holeDia.16mmDia.16mm
Density of briquettes1.3 g/cm31.3g/cm³
Weight(kg)700kg1000kg
Overall dimension(mm)2700*600*16002000*600*1700
Raw material moisture requirements8~10%8~10%

Click Now for Catalogs & Factory Price!



Shape of charcoal briquette extruder machine can be made


Biomass screw charcoal briquetting press machine can produce many types of charcoal briquettes like quadrangular and hexagon briquettes with the diameters of 40mm, 50mm, 60mm, 70mm, etc. those briquettes have a same character, that is there is a hole in the middle of the briquettes to improve the carbonization. These charcoal briquettes with different diameters give various choices for the users, so it is very popular in the briquette machine market. The clients can produce different products according to their own requirements.

Click Now for Catalogs & Factory Price!



Projects of briquette production line

Click Now for Catalogs & Factory Price!



Advantages of screw charcoal briquette extruder machine

1.Long Life of Screw Shaft

We adopted a durable material (high hardness alloy steel) to make the shaft. We use a different process then what is normally used to make the screw shaft. Our screw shaft is manufactured with a milling machine which guarantees that the distance between every screw is the same, and the angle of every screw is the same.

2. Long Life of Inner Former

The Inner Former can be used for 1-2 years. The former is made from a whole steel bar through a water jet cutting system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy. This is why the produced briquette is smooth. It consists of two parts, you need to change only the key part when it is worn.

3. Heating section

We adopted two heat collars which are made from thick copper wires and are ceramic inside.

4.Forming Hopper

An attractive feature on the forming hopper is that we added a movable plate on the bottom. It has two functions, one is you can clean it easily. The other is that you can discharge the inputted material when it is jammed.

5.Lubricating System

We have adopted a lubricating system for the gear box. In order to oil the gear box properly, it has an exhaust function to maintain consistent air pressure.

Click Now for Catalogs & Factory Price!



The certificates of our briquette extruder machine

GEMCO is your reliable manufacturer and supplier of biomass wood screw briquette extruder machine. We have owned various quality authentication from both alib aba and government institutes. Our aim is to offer high quality but low cost charcoal briquette extruder machine for clients around the word.
