Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: GEMCO animal feed pellet machine
  • Model Number: ZLSP150B animal feed pellet machine.
  • Type: Feed Pellet Machine
  • Voltage: 380V, 50HZ, 3Phase
  • Power(W): 7.5kw
  • Dimension(L*W*H): 1150*650*950mm
  • Weight: 150 kg
  • Certification: ISO, BV and CE Certificated feed pellet making machine
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Raw Material: maize, corn, wheat bran, soybean meal/cake, bone powder, etc.
  • Application: small catfish/goat/cattle/chicken feed pellet machine
  • Capacity: making 100-200 kg pourtry feed pellets per hour
  • Feed pellets diameter: 2.5-10mm
  • Advantage: the machine is supplied directly by factory with low price
  • Motor choice: Electric, diesel, petrol, PTO
  • After-sales Service: Sufficient spare parts of feed pellet making machine
  • Year of manufacture: New
  • Price level: Low Cost
  • Widely exported to: Russia, USA, Australia, Malaysia, Chile, Portugal, etc.

Packaging & Delivery

Packaging Details Plywood box.
Delivery Time 15Days

GEMCO Pellet Mill 2017 catfish dog chicken goat cattle poultry feed pellet making use pet food animal feed pellet machine

Animal feed pellet machine, also known as feed pellet making machine or poultry feed pellet making machine, is utilized to make crushed grain, grass and other animal feed materials into compacted cylindrical pellets to be used for feeding animals and poultries such as chicken, catfish, goat, cattle, rabbit, fish, dog, cat and so on.



poultry feed pellet making machine technical parameter

Base on different capacities and working principles, animal feed pellet machines are divided into small feed pellet making machine (flat die poultry feed pellet making machine, 80-800kg/h) and large feed pellet machine (ring die feed pellet making machine, 1.2-2T/H).

TypePowerOutputG.W.Package size
ZLSP 120B

Three phase 3kw

60-100 kg/h

77kg 800*320*740mm

ZLSP 150B

Three phase 4kw

90-120 kg/h

100kg800*350*740mm

ZLSP 200B

Three phase 7.5kw

200-300 kg/h

204kg1050*480*990mm

ZLSP 230B

Three phase 11kw

300-400 kg/h

218kg1180*520*1020mm

ZLSP 260B

Three phase 15kw

400-600 kg/h

300kg1240*540*1070mm

ZLSP 300B

Three phase 22kw

600-800 kg/h

437kg1300*560*1220mm

Click Now for Catalogs & Factory Price!

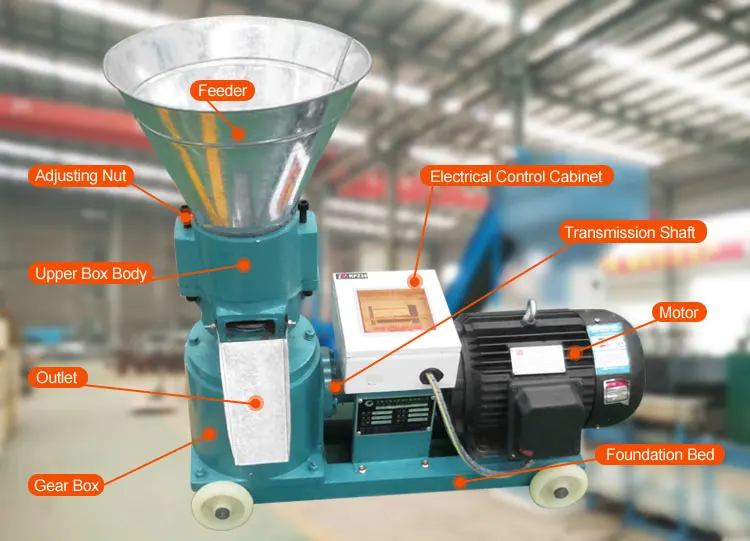

ZLSP150B pellet machine animal feed construction



All models feed pellet making machine demonstration



Small Flat Die animal feed pellet machine finished pellets

This flat die animal feed pellet machine belongs to small pellet machine for animal feed because of its capacity (under 800kg/h), it is applicable for making chicken feed pellets, goat feed pellets, cattle feed pellets, rabbit feed pellets, fish feed pellets, dog feed pellets, etc.

The size of fished animal feed pellets has various choices: 4, 6, 8, 10, 12mm, or other customized diameter. At the same time, you can customize the flat die of the animal feed pellet machine with different thickness and compression ratio to adapt to different materials and realize best pelleting result.

Click Now for Catalogs & Factory Price!



Advantages of Our poultry feed pellet making machine

The whole animal feed pellet machine is casted.
Flat die and main shaft are made from 40Cr which is wear-resistant.
The service life of roller and die can reach 500hr.
Easy to operate and maintain.
Safe to use (with Emergency Stop button).
No special requirements for working site.





Advanced processing facilities of GEMCO animal feed pellet machine



GEMCO is a professional manufacturer of animal feed pellet machine including poultry feed pellet making machine, goat feed pellet machine, cattle feed pellet machine and poultry feed pellet machine, catfish feed pellet machine. GEMCO has been devoted to feed pellet making machine for more than 10 years. Till now our animal feed pellet making machines have exported to over 65 countries and regions all over the world, which including Russia, USA, Australia, Malaysia, Chile, Portugal, etc. We also have rich experiences in turnkey feed pellet making projects, do overall onsite commissioning and offer aftersales service.



How do we pack the poultry feed pellet making machine

Click Now for Catalogs & Factory Price!


feed pellet making machine in complete feed pellet plant

.
.
.


Certification of Our Flat Die animal feed pellet machine



Why GEMCO feed pellet making machine COST LESS?

small animal feed pellet making machine Customer Visits
